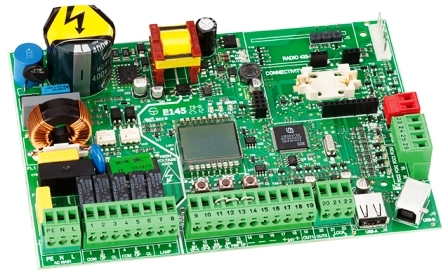

FAAC E145 control unit for swing gates

faac_e145_790006.jpg06A.300695
faac_e145_manual_eng
Description

FAAC E145 control unit for automated swing systems 230V

Designed to control both swing and sliding gates for vehicle & pedestrian access.
The E145 comes with safezone technology - obstacle detection & reversal on contact (when optional encoder is used). Greentech are solutions which save 90% of power compared to tradional systems. Board able to adapt automatically adapt to different input voltage (from 90V to 260V)
Can automatically find the deceleration & stop points during setup when using the safecoder with physical stops. In event of power failure the optional absolute encoder keeps leaf position memorised. It has embedded radio decoding in order to support only original FAAC transmitters (upto 1600 radio codes)2 programming levels are available from the board (BASIC & ADVANCED), using buttons & LCD display, 3rd level from PC.
E145 control board can control one or two swing-leaf gates operators, or one sliding gate operator, or mixed swing-sliding gate installations.
