BFT COMPAT SR 230V

bft-compat-sr
Description

BFT COMPAT SR - PROX - SQ operator for sliding gates (old model)

The Compat sliding operator is an old model of the Italian company BFT. Several of the spare parts continue to be available. The Compat sliding motor was delivered with two different types of external gears: Gear with pin, that is, at the top of pinion there is a hole and locks onto the shaft with a pin. The later version is a straight pinion that secures on shaft securely (as shown in the separate diagram). Also, depending on the gear, there is different codes of reduction kits.

The new compatible control unit is ALPHA. The new ALPHA board is equipped with a Clonix 433mhz receiver and the old TM controllers are not compatible.

Illustration, components and spare parts for sliding operator BFT Compat 230V (version holed gear)

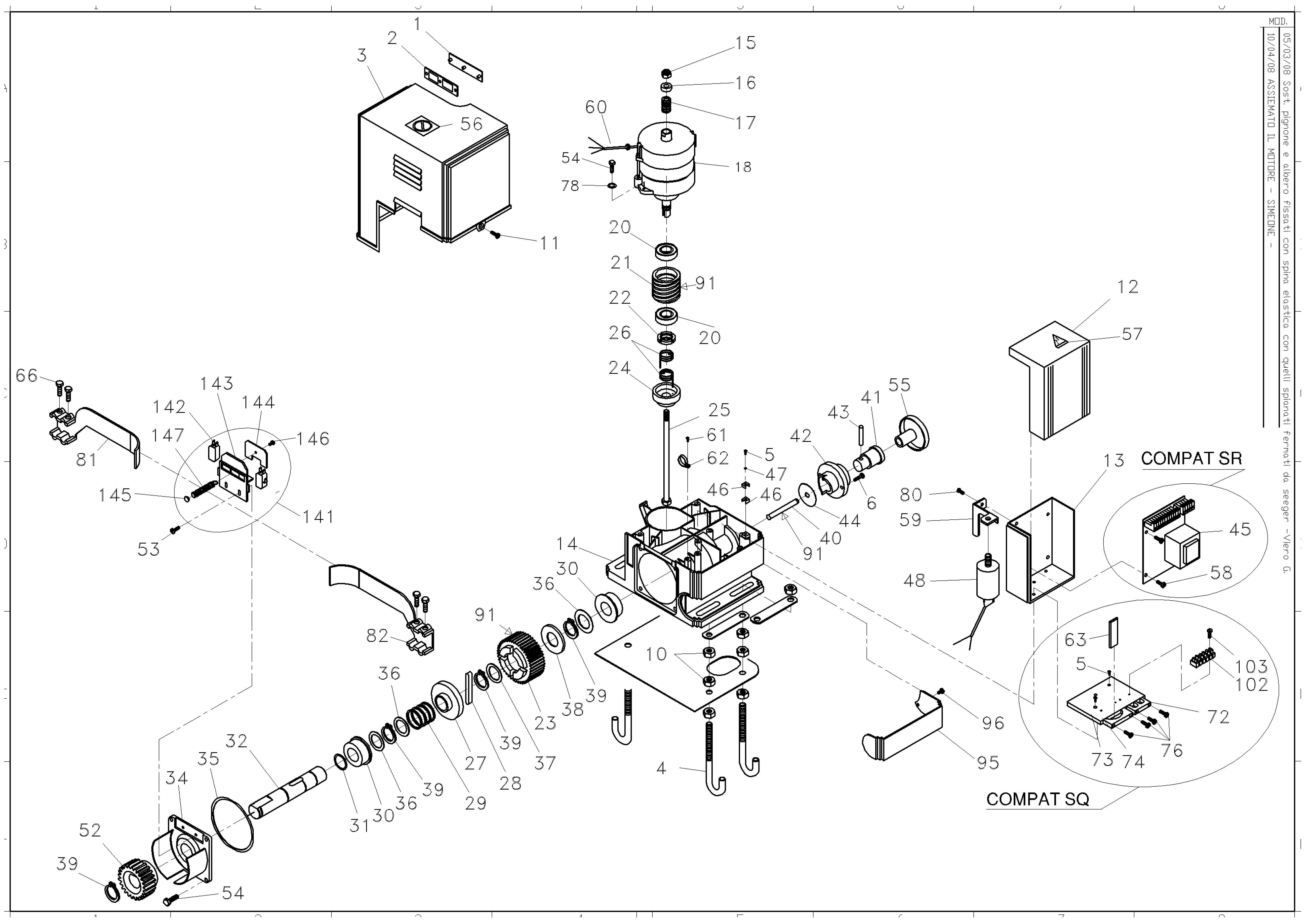

Illustration, components and spare parts for sliding operator BFT Compat 230V (version straight gear)


 SKUNamePrice: Quantity
CLE ΠΟΜΟΛΟ ΑΠΑΣΦΑΛΙΣΗΣ ΓΙΑ ΜΟΤΕΡ COMPAT03P.800249 (55)RELEASE KNOB BFT COMPAT

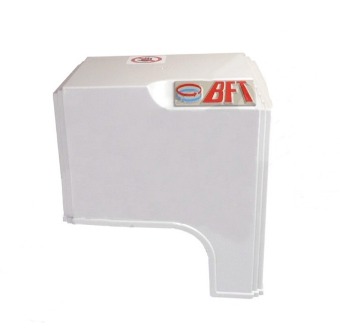

i098400-compat.jpg03P.900169 (1-2-3-11-56)KIT COVER BFT COMPAT
ΣΥΜΠΛΕΚΤΗΣ ΚΙΤ ΓΙΑ ΜΟΤΕΡ BFT COMPAT03P.900171 (15-16-17-20-21-22-24-25-26)CLUTCH KIT BFT COMPAT/LEM
ΚΙΤ ΜΕΙΩΣΗΣ BFT COMPAT/DEIMOS03P.900172 (27,28,29,32,36,37,38)KIT REDUCTION BFT COMPAT/DEIMOS/LEM
i098404-compat03P.900173 (33,34,35,52,54)OUTPUT KIT WITH EXTER.GEAR AND PIN (35,54,33,34,52)
i098405-COMPAT03P.900174 (44-55-42-41-6-43-40)RELEASE KIT BFT COMPAT SR 230V

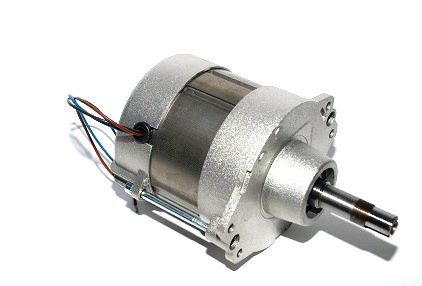

i098413-motor-compat.jpg03P.900179 (18)ΚΙΤ ΜΟTOR 220V 50HZ BFT COMPAT/DEIMOS

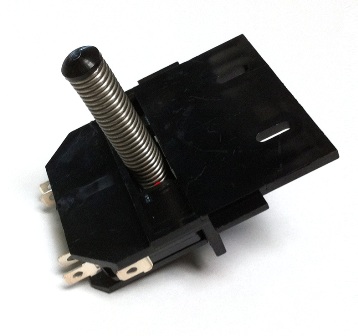

ΤΕΡΜΑΤΙΚΟΣ ΔΙΑΚΟΠΤΗΣ BFT DEIMOS, COMPAT, LEM, ERGO03P.900187 (141)LIMIT SWITCH KIT FOR ALL BFT SLIDING OPERATORS

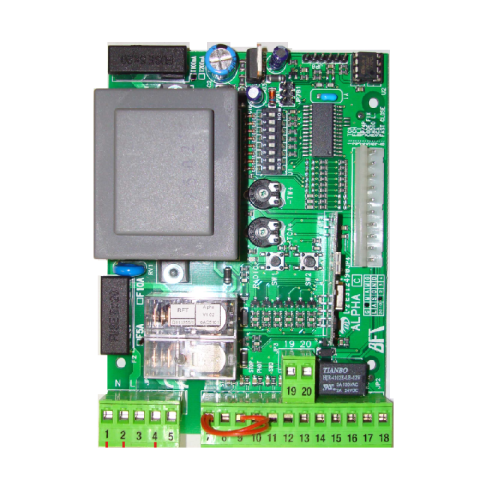

d113680-00002-alpha-compat03P.900195 (45-23)CONTROL BOARD BFT ALPHA SD
ΕΞΩΤΕΡΙΚΟ ΓΡΑΝΑΖΙ Ζ14 BFT COMPAT03P.900216 (33-52)EXTERNAL GEAR Ζ14 OLD TYPE BFT COMPAT-LEM. It is provided with the pluf fot the anchoring on the shaft.
i0989308.jpg03P.900356 (34,39,52)OUTPUT KIT WITH EXTER.GEAR AND SEEGER (SPIANATO) (34,39,52)
i098932-compat.jpg03P.900358 (39-52)STRAIGHT EXTERNAL GEAR Z14 FOR BFT COMPAT (fig.2)

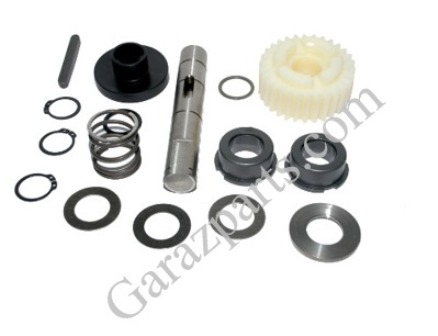

i098935-compat.jpg03P.900361 (30-27-36-28-29-37-38-32)REDUCTION KIT BFT COMPAT FOR STRAIGHT PINION
ΕΣΩΤΕΡΙΚΟ ΓΡΑΝΑΖΙ BFT COMPAT03P.900786 (23)INNER CROWN BFT DEIMOS/COMPAT
capacitor-compat.jpg03P.900886 (48)CAPACITOR 10μF BFT COMPAT/DEIMOS

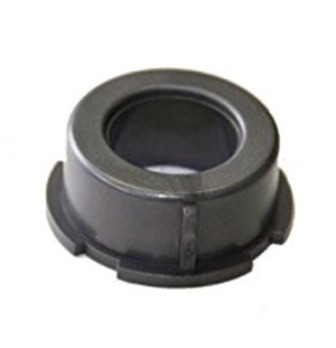

ΦΩΛΙΑ ΑΞΟΝΑ BFT DEIMOS,LEM,COMPAT03P.900932 (30)KIT SHAFT BUSH REDUCTION BFT DEIMOS, LEM, COMPAT
ΤΕΡΜΑΤΙΚΑ ΣΤΟΠ ΣΥΡΟΜΕΝΩΝ ΜΟΤΕΡ BFT03P.901140 (66-81-82)BRACKET END STROKE FOR ALL SLIDING OPERATORS BFT
i101111-compat.jpg03P.901141 (91)GREASE FOR COMPAT SR 230V.
