ACM UNITITAN HR E GEARMOTOR 200/D60 - 170KG FOR ROLLING SHUTTERS
01N.121001
Description
ACM UNITITAN HR E gearmotor for rolling shutters
Technical specifications:
| Weight motor | 8 Kg |
| Absorbed Power | 630 Watt |
| Power supply | 220 - 230 volt (50/60Ηz) |
| Consumption | 2.7 A |
| Capacitor | 20 μF |
| Thermal Protection | 160°C |
| Working Temperature | -20 C ~ + 55 C |
| Speed motor | 10 rpm |
| Torque | 170 Nm |
| Release | Electrobrake with release |
| Type lubrication | Grease |
| Limit switch range | 6 m |
| Cut out temperature | 4 min |
| Lifting | 170 Kg |
| Corona | D200 mm |
| Power | 220 volt |
| Tube rolling | D60 mm |

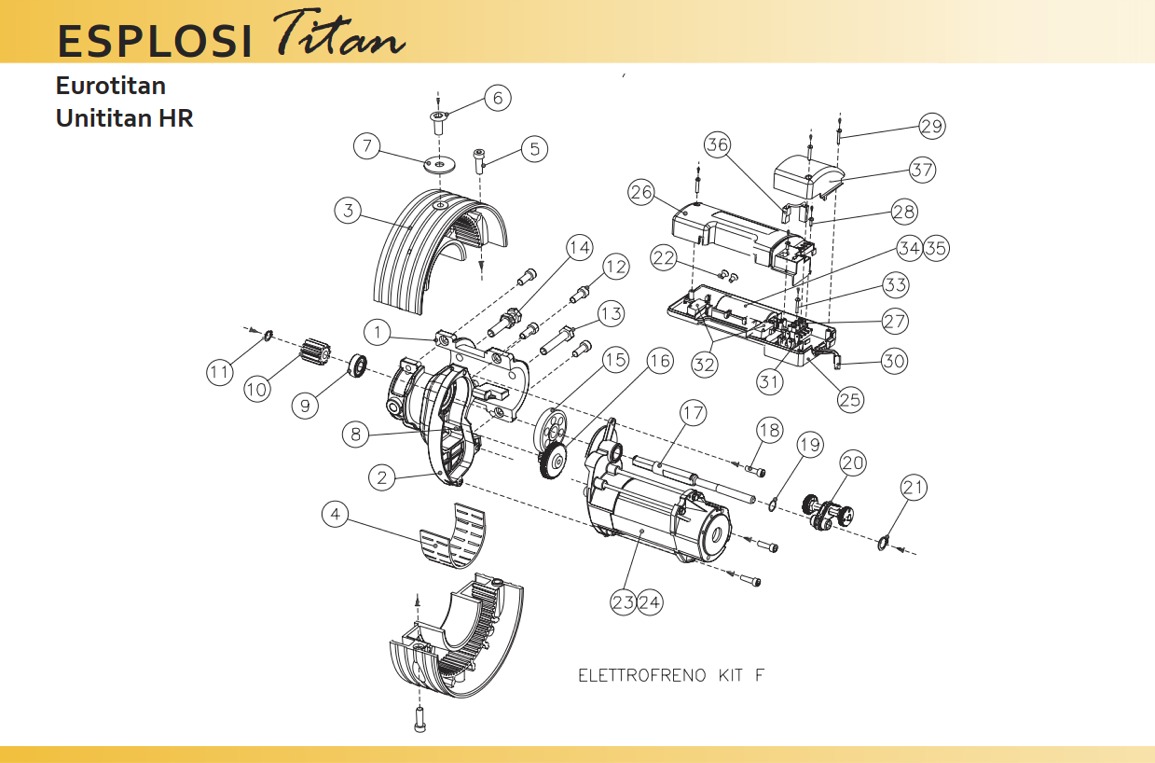

Illustration <A>, components and spare parts for ACM Unititan HR E
Illustration <B> terminal board for old model gearmotors ACM
Illustration <C> kit electrobrake ACM
| SKU | Name | Price: | Quantity | |
|---|---|---|---|---|
 | 01P.900010 | SHIM RANGE FOR 220 MM ENGINE RING DAMPER SPRINGS FOR ACM |
|
|
 | A-25-26-27-37 (01P.900007) | TERMINAL BOARD NEW TYPE ACM |
|
|
 | A-34 (08N.100020) | CAPACITOR 20mF ACM |
|
|
 | B-11-13 (01P.900005) | BOX FOR OLD TYPE TERMINAL BOARD ACM |
|
|
 | B-12 (01P.900006) | TERMINAL BOARD ACM (for old model) |
|
|
 | C (01P.900001) | ELECTROBRAKE FOR ACM MODEL EUROTITAN-UNITITAN 240/76 - TITAN 240/101 (TYPE P) |
|
|
 | C-01 (01P.900009) | TEFLON ELECTROBRAKE ACM |
|
|
 | C-02 (01P.900012) | MANUAL RELEASE ACM |
|
|
 | C-06 (01P.900003) | UNLOCKING FLEXIBLE CABLE ACM L=5m |
|
|
 | C-06 (01P.900004) | UNLOCKING FLEXIBLE CABLE ACM L=7m |
|
