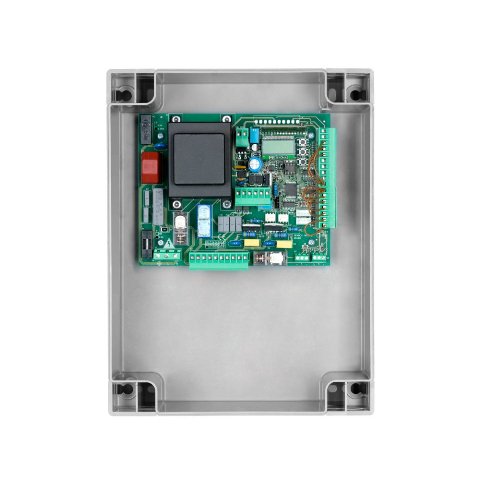

BENINCA BRAINY 230V electronic control panel
02N.501003
Description
BENINCA BRAINY 230V external control panel
Application: 1 or 2 actuators for swing gates, opposing sliding, hydaulic operators and industrial folding gates
Power supply: 230V
Motors power supply: 230V - 600W+600W
Main fuctions:
- Built-in LCD display
- Built-in 433.92mhz 64 codes and 3 codes radio channel (programmable code, rolling code, ARC)
- Removable terminal blocks
- Encoder input for obstruction detection
- Separate limit switch inputs for each motor
- Open, close and pedestrian inputs
- Open-close and close photocell inputs
- N.C or 8K2 safety edge input
- Output for 230Vac and 12Vac/dc electric lock
- Gate open indicator light output, service light, second radio channel and test photocells
- Autoset operating parameters with encoder equipped motors
- Electronic adjustment of indvidual couple for each motor and working times
- Electronic decelerations
- Optional parameter configuration and remote control management using the Advantouch system
- Number of manoeuvres
- Programming access password
- Maintenance reminder
Wiring diagram BRAINY 230V:
