FAAC C720 - C721 operators 24V for sliding gates
06A.301901-06A.301902
Description

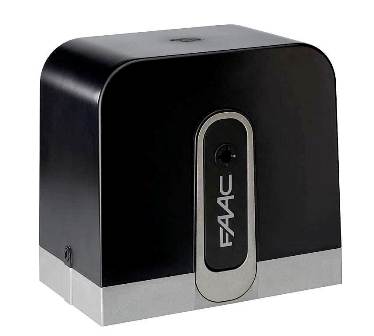

FAAC C720 - C721 low-voltage gearmotor 24V for residential sliding gates
New mobile-axis reduction principle. FAAC PATENT. Exceptionally high mechanical performance >80%. Control unit with anti-crushing device and electronic encoder with reverse function upon detection of obstacle. Magnetic limit switches. Master-Slave function for controlling 2 opposing leafs with an E721 board.
C720 (CODE FC002.106): For max weight leaf gate of 400kg and residential use
C721 (CODE FC002.107): For max weight leaf gate of 800kg and commercial use
Technical specifications
- Power supply voltage: 230V 50Hz
- Motor power supply: 24V
- Power: 220W
- Electric motor: 3200 rpm (C720) - 3600 rpm (C721)
- Thrust on gate: 320N (C720) - 530N (C721)
- Pinion: Z28 - module 4
- Gate speed: 18m/min
- Limit switch: Magnetic
- Dimensions: 300L X 180D X 280H (in mm)
- Incorporated electronic control unit: E721

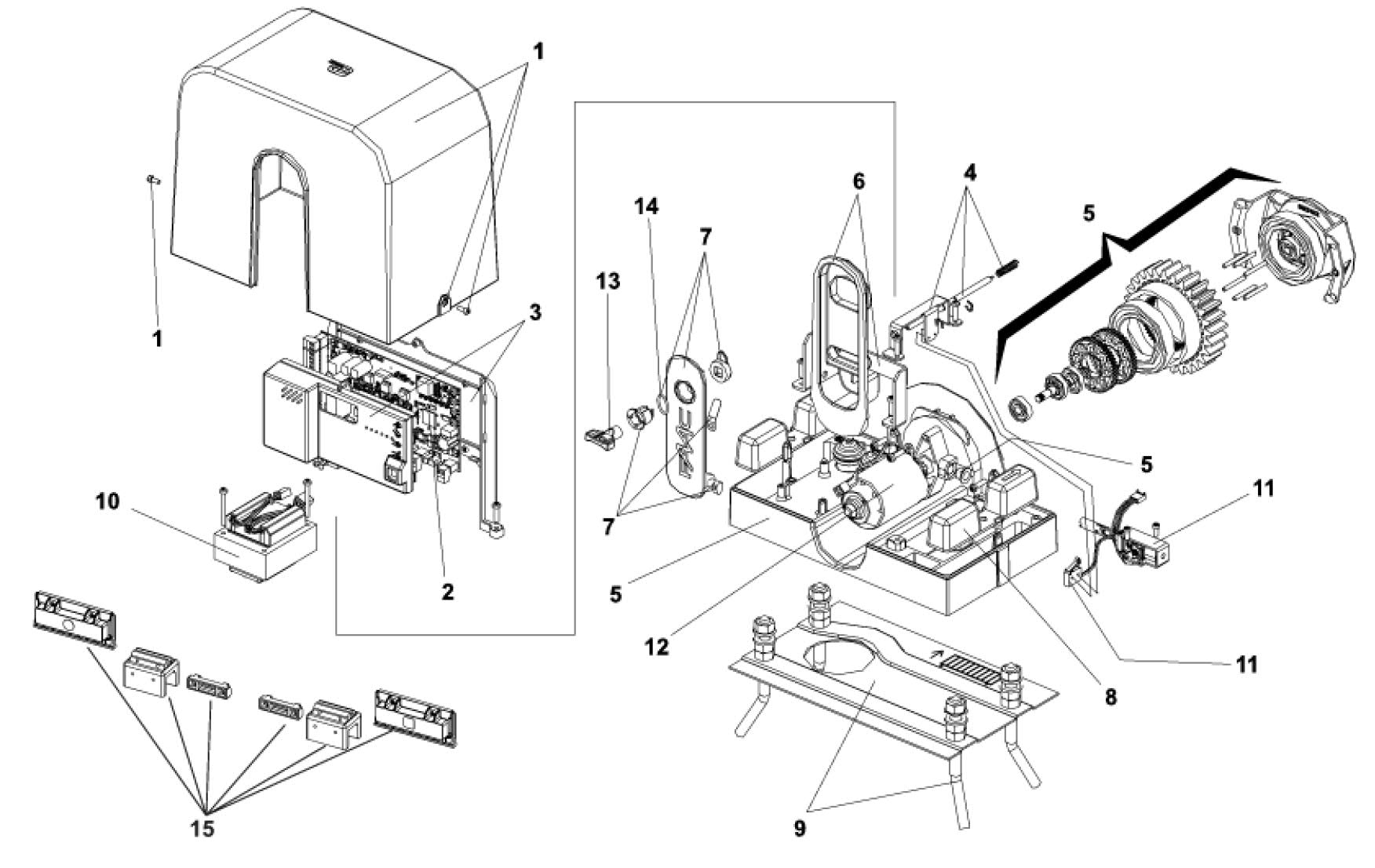

Illustration [A], components and spare parts for sliding operator FAAC C720
Illustration [B], components and spare parts for sliding operator FAAC C721
| SKU | Name | Price: | Quantity | |
|---|---|---|---|---|

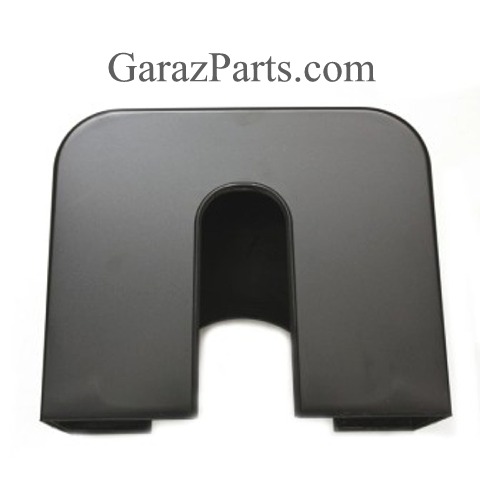

 | 001-AB (06A.302798) | COVER C720/C721 |
|
|

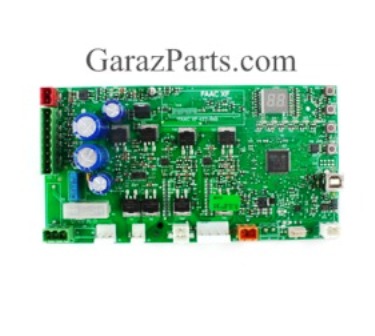

 | 002-AB (06A.302854) | CONTROL UNIT 24V FOR C720-C721 |
|
|
 | 003-AB (06A.302803) | CONTROL UNIT SUPPORT C720-C721 |
|
|

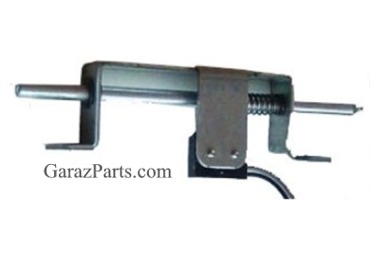

 | 004-AB (06A.302804) | RELEASE C720-C721 |
|
|

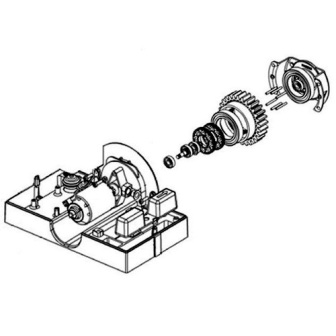

 | 005-A (06A.303404) | BODY ASSEMBLY C720 |
|
|

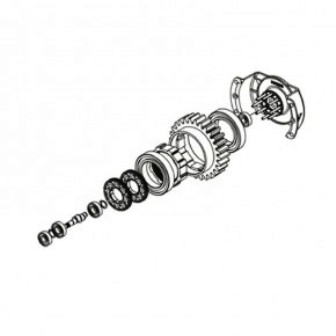

 | 005-B (06A.303413) | BODY ASSEMBLY C721 |
|
|
 | 006-AB (06A.302862) | LEVER RELEASE C720-C721 |
|
|

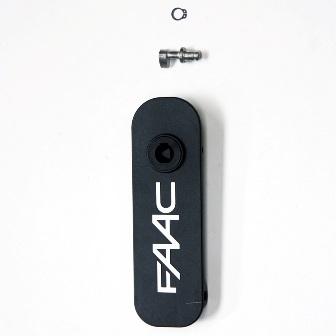

 | 007-A (06A.302860) | NEW LEVER RELEASE C720 |
|
|

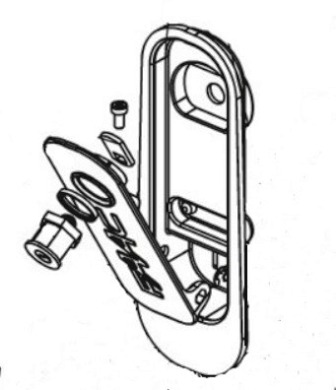

 | 007-B (06A.302847) | LEVER RELEASE C721 |
|
|

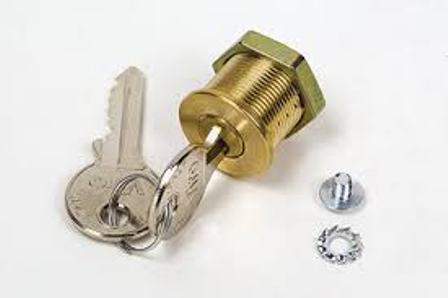

 | 007/1-Β (06A.301444) | RELEASE LOCK WITH CUSTOMISED KEY FROM Νο1 - Νο36 |
|
|

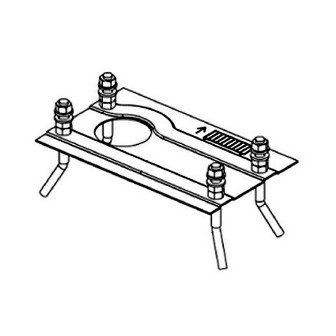

 | 009-AB (06A.302805) | FOUNDATION PLATE C720-C721 |
|
|
 | 010-A (06A.302802) | TRANSFORMER FOR C720 |
|
|
 | 010-B (06A.302560) | ΜΕΤΑΣΧΗΜΑΤΙΣΤΗΣ ΓΙΑ ΜΟΤΕΡ C721 |
|
|

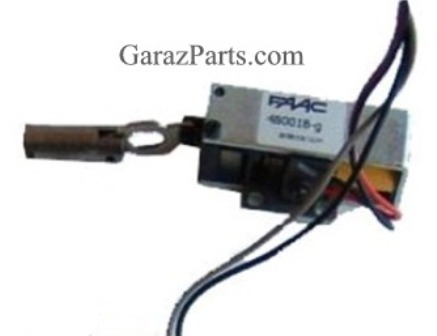

 | 011-AB (06A.302799) | ΗΛΕΚΤΡΟΜΑΓΝΗΤΗΣ C720-C721 |
|
|

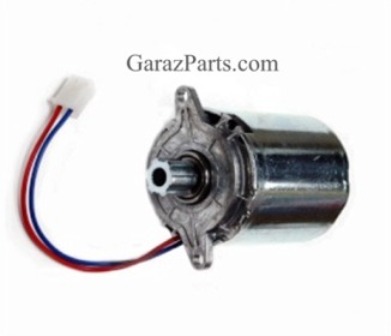

 | 012-A (06A.302800) | MOTOR C720 |
|
|
 | 012-B (06A.302863) | MOTOR C721 |
|
|

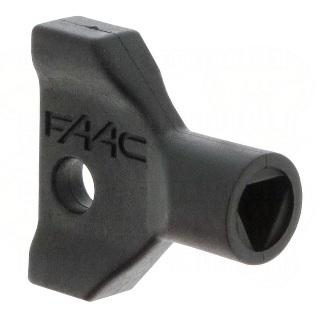

 | 013-A (06A.301226) | RELEASE KEY C720 |
|
|

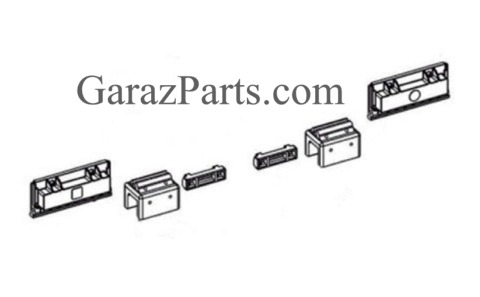

 | 015-AB (06A.302790) | STOP SPARE PART C720/C721 |
|
